Roof Conductor Holders with Adhesive Pad

For installing air-termination systems, e.g. on trapezoidal roofs.
The conductor holder can be used on smooth (unstructured) surfaces such as metal roofs / metal surfaces. The conductor holders are stuck to the roof (remove protective backing).

Clean the surface with the special cleaning liquid (Part No. 297 199) as indicated in the installation instructions.
One litre of the special cleaner is sufficient for approx. 1000 adhesive pads.
The roof conductor holders shall be installed at a temperature of ≥ +15 °C.
Robust, weather-resistant and UV-stabilsed type, halogen-free.

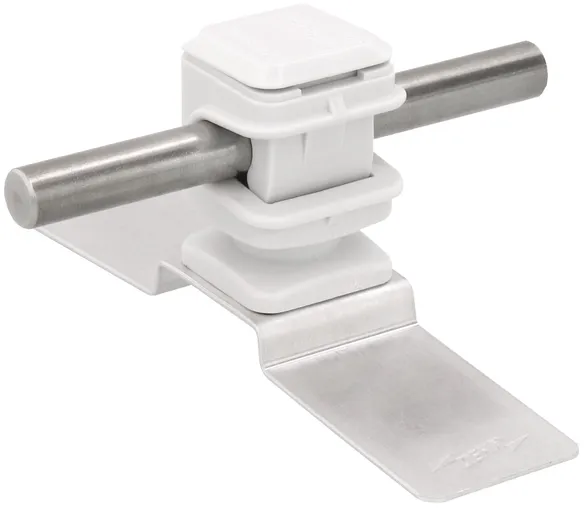

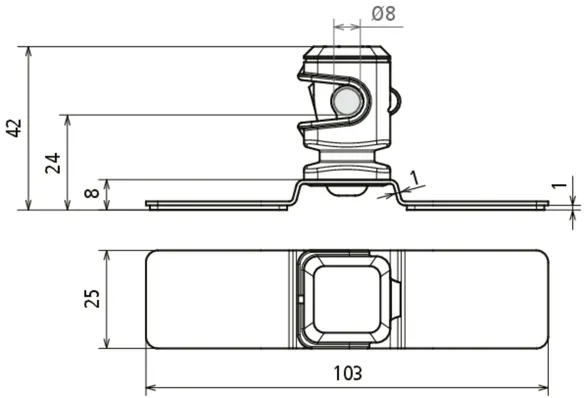

DEHNsnap conductor holder with formable aluminium brace

1 Termék

Cikkszám 297130 DLH DS 8 H16 KP K AL

GTIN 4013364492523, Vámtarifa szám (EU): 85389099, Bruttó súly: 19.84 g, PU: 50.00 pc(s)

Képek

További információ

Roof conductor holder with aluminium brace and adhesive pad (DEHNsnap)
Roof conductor holder with adhesive pad and
formable aluminium brace for installing
air-termination systems on
different sheet roof shapes.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Brace material: Aluminium – formable
Material of conductor holder: Plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Type of conductor holder: DEHNsnap
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 KP K AL
Part No.: 297130
or equivalent.



Műszaki adatok

Brace material Aluminium – formable
Material of conductor holder Plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Type of conductor holder DEHNsnap
Height of conductor holder 16 mm
Conductor routing loose
Dimensions as per CAD

A 297130 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 297130 terméket hozzáadtuk a kosárhoz.

Webshop indítása

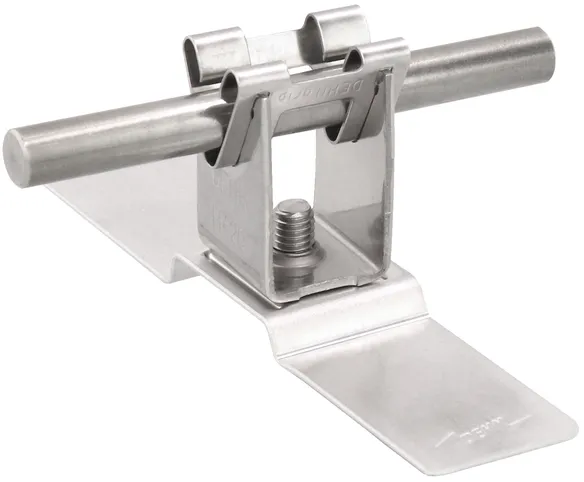

DEHNgrip conductor holder with formable aluminium brace

1 Termék

Cikkszám 297140 DLH DG 8 H20 KP V2A AL

GTIN 4013364492530, Vámtarifa szám (EU): 85389099, Bruttó súly: 28.40 g, PU: 50.00 pc(s)

Képek

További információ

Roof conductor holder with aluminium brace and adhesive pad (DEHNgrip)
Roof conductor holder with adhesive pad and
formable aluminium brace for installing
air-termination systems on
different sheet roof shapes.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Brace material: Aluminium – formable
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Type of conductor holder: DEHNgrip
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H20 KP V2A AL
Part No.: 297140
or equivalent.

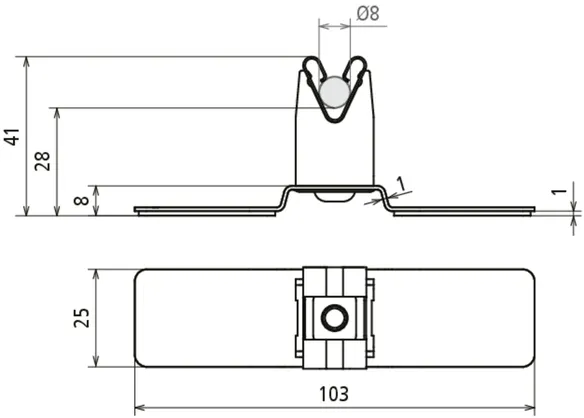

Műszaki adatok

Brace material Aluminium – formable
Material of conductor holder StSt
Conductor support Rd 8 mm
Type of conductor holder DEHNgrip
Height of conductor holder 20 mm
Conductor routing loose
Dimensions as per CAD

A 297140 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 297140 terméket hozzáadtuk a kosárhoz.

Webshop indítása

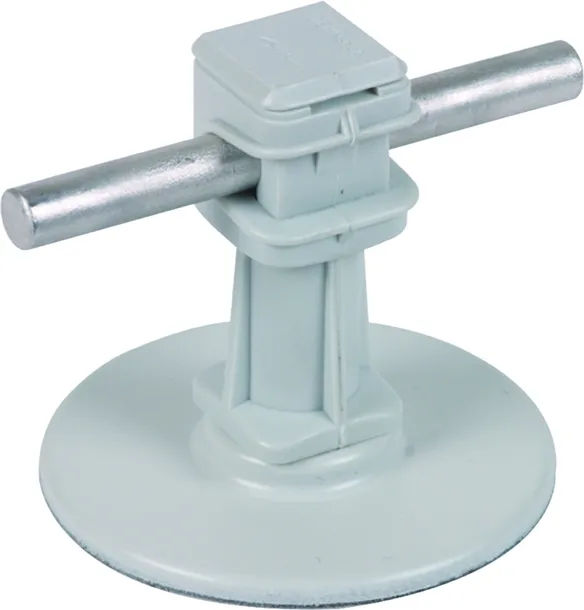

DEHNsnap conductor holder with base plate

1 Termék

Cikkszám 297110 DLH DS 8 H36 KP67 K GR

GTIN 4013364100886, Vámtarifa szám (EU): 85389099, Bruttó súly: 34.72 g, PU: 50.00 pc(s)

Képek

További információ

Roof conductor holder with adhesive pad (DEHNsnap)
Roof conductor holder with adhesive pad for
installing air-termination systems, e.g.
on trapezoidal sheet roofs.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Base plate material: plastic
Base plate colour: grey ●
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Type of conductor holder: DEHNsnap
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H36 KP67 K GR
Part No.: 297110
or equivalent.

Tanúsítványok

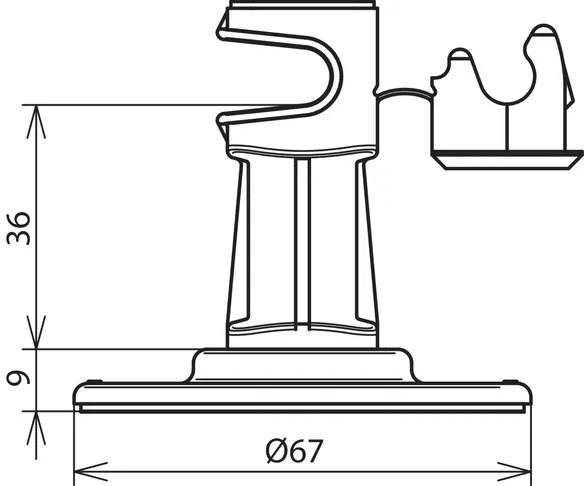

Műszaki adatok

Base plate material plastic
Base plate colour grey ●
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Type of conductor holder DEHNsnap
Height of conductor holder 36 mm
Conductor routing loose
Dimensions Ø 67 mm

A 297110 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 297110 terméket hozzáadtuk a kosárhoz.

Webshop indítása

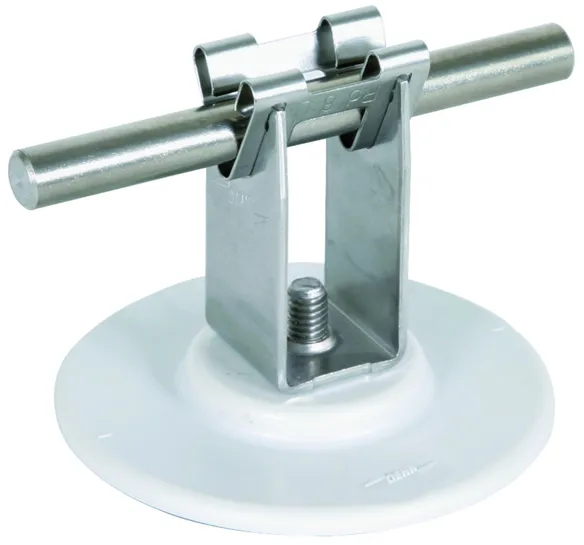

DEHNgrip conductor holder with base plate

1 Termék

Cikkszám 297120 DLH DG 8 H32 KP67 V2A K GR

GTIN 4013364100916, Vámtarifa szám (EU): 85389099, Bruttó súly: 46.00 g, PU: 50.00 pc(s)

Képek

További információ

Roof conductor holder with adhesive pad (DEHNgrip)
Roof conductor holder with adhesive pad for
installing air-termination systems, e.g.
on trapezoidal sheet roofs.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Base plate material: plastic
Base plate colour: grey ●
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Type of conductor holder: DEHNgrip
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H32 KP67 V2A K GR
Part No.: 297120
or equivalent.

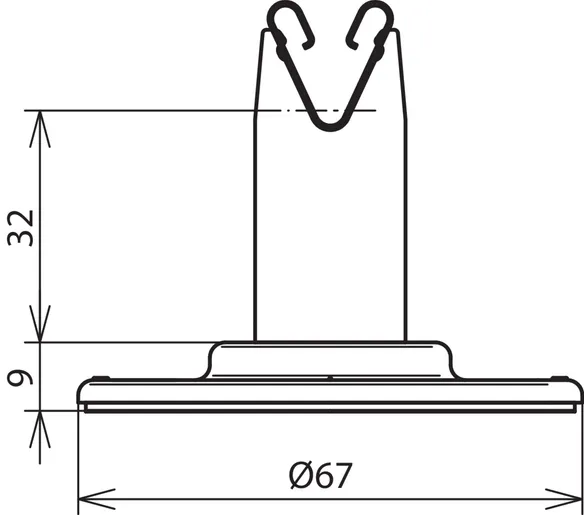

Műszaki adatok

Base plate material plastic
Base plate colour grey ●
Material of conductor holder StSt
Conductor support Rd 8 mm
Type of conductor holder DEHNgrip
Height of conductor holder 32 mm
Conductor routing loose
Dimensions Ø 67 mm
Standard EN 62561-4
