Cikkszám 971121 DSE M 1 60

GTIN 4013364138582, Vámtarifa szám (EU): 85363090, Bruttó súly: 300.00 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

Coordinated DEHNsecure M 1 60 lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 60
Part No.: 971121
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 1.5 kV
Directly coordinated with DEHNguard	DG SE DC 60 (Part No. 972 110)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

A 971121 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971121 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971120 DSE M 1 220

GTIN 4013364133631, Vámtarifa szám (EU): 85363090, Bruttó súly: 268.20 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

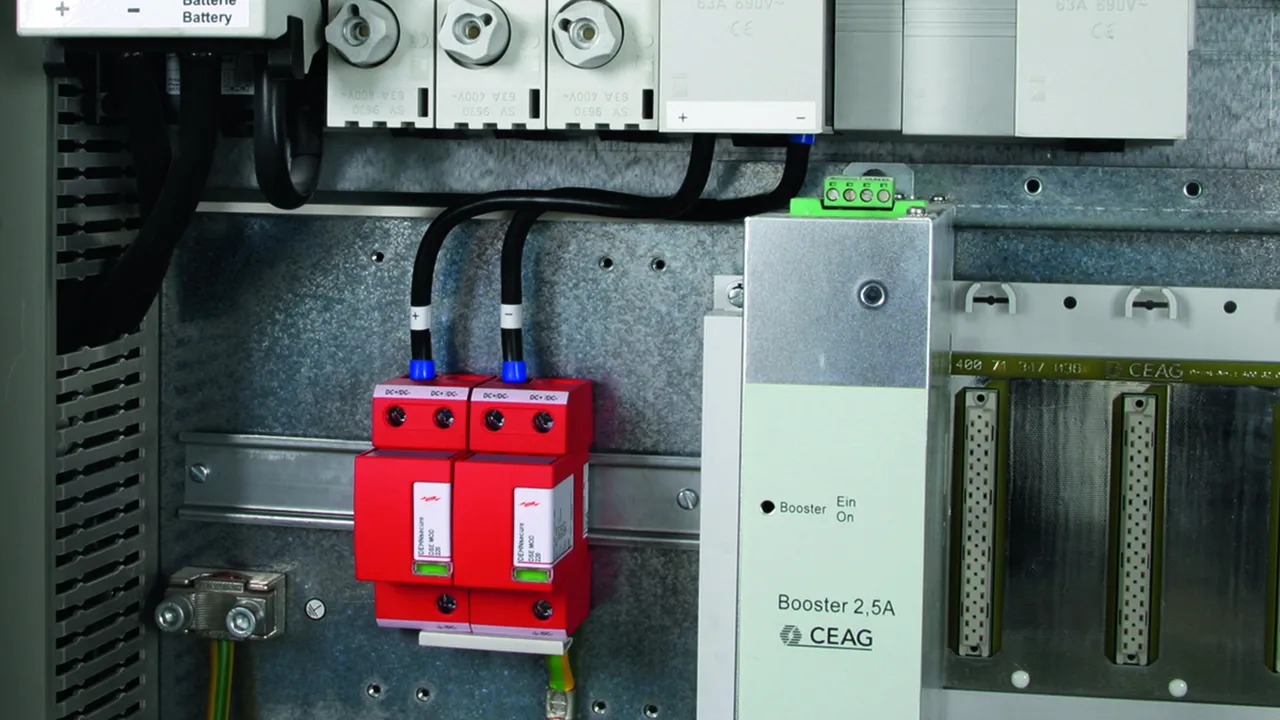

Coordinated DEHNsecure M 1 220 lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 220
Part No.: 971120
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 550 (Part No. 972 130)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

A 971120 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971120 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971122 DSE M 1 242

GTIN 4013364144477, Vámtarifa szám (EU): 85363090, Bruttó súly: 273.70 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

Coordinated DEHNsecure M 1 242 lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V a.c.
Voltage protection level: <= 2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 242
Part No.: 971122
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Extended technical data:	when used in safety lighting systems
– Max. continuous operating voltage (AC) (U_C )	255 V

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 550 (Part No. 972 130)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	yes
– Max. continuous operating voltage (AC) (U_C )	255 V

A 971122 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971122 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971126 DSE M 1 60 FM

GTIN 4013364138599, Vámtarifa szám (EU): 85363090, Bruttó súly: 304.00 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

Coordinated DEHNsecure M 1 60 FM lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <=1.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 60 FM
Part No.: 971126
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL
Type of remote signalling contact	changeover contact
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Directly coordinated with DEHNguard	DG SE DC 60 FM (Part No. 972 115)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0,1 A; 125 V / 0,2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

A 971126 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971126 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971125 DSE M 1 220 FM

GTIN 4013364133648, Vámtarifa szám (EU): 85363090, Bruttó súly: 241.90 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

Coordinated DEHNsecure M 1 220 FM lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 220 V a.c.
Voltage protection level: <=2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 220 FM
Part No.: 971125
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Type of remote signalling contact	changeover contact
Extended technical data:	when used in safety lighting systems

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	220 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 500 FM (Part No. 972 135)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	no

A 971125 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971125 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971127 DSE M 1 242 FM

GTIN 4013364144484, Vámtarifa szám (EU): 85363090, Bruttó súly: 269.50 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

Coordinated DEHNsecure M 1 242 FM lightning current arrester
Modular, pluggable and coordinated single-pole
lightning current arrester, width: 2 mod.
for d.c. applications
With remote signalling contact
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 242 V a.c.
Voltage protection level: <=2.5 kV
Lightning impulse current (10/350 µs): 25 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 1 242 FM
Part No.: 971127
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Voltage protection level (U_P )	≤ 2.5 kV
Max. mains-side overcurrent protection	250 A gG
Type of remote signalling contact	changeover contact
Extended technical data:	when used in safety lighting systems
– Max. continuous operating voltage (AC) (U_C )	255 V

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	242 V
Lightning impulse current (10/350 µs) (I_imp )	25 kA
Specific energy (W/R)	156.25 kJ/ohms
Voltage protection level (U_P )	≤ 2.5 kV
Coordinated with DEHNguard (cable length ≥ 1 m)	DG SE DC 500 FM (Part No. 972 135)
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (DC+/DC-, DC+'/DC-', 9/DC-) (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, 9/DC-) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+'/DC-') (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	when used in safety lighting systems
– DC and AC operation possible	yes
– Max. continuous operating voltage (AC) (U_C )	255 V

A 971127 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971127 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971221 DSE M 2P 60

GTIN 4013364138612, Vámtarifa szám (EU): 85363090, Bruttó súly: 638.00 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

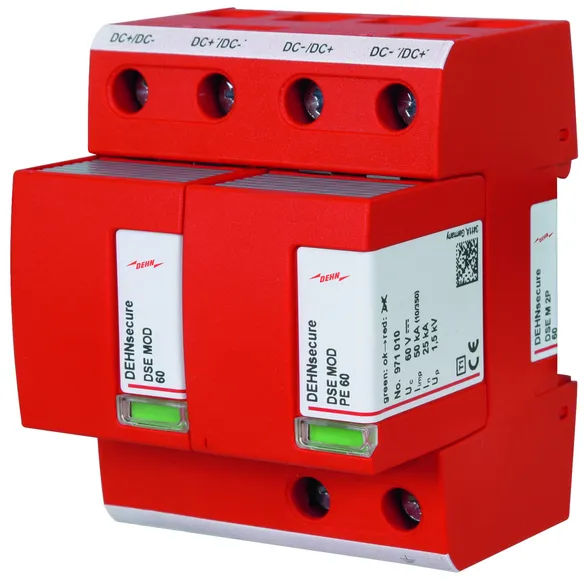

Coordinated DEHNsecure M 2P 60 lightning current arrester
Modular, pluggable and coordinated two-pole
lightning current arrester, width: 4 mod.
for d.c. applications
Type 1 SPD according to EN 61643-11
Spark gap technology ideally suited for use in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V a.c.
Voltage protection level: <=1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 2P 60
Part No.: 971221
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Specific energy (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (W/R)	156.25 / 625.00 kJ/ohms
Directly coordinated with DEHNguard	DG SE DC 60 (Part No. 972 110)
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, DC-/DC+, 9) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+´/DC-´, DC-´/DC+´) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL

A 971221 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971221 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971226 DSE M 2P 60 FM

GTIN 4013364138629, Vámtarifa szám (EU): 85363090, Bruttó súly: 675.00 g, PU: 1.00 pc(s)

Képek

További információ

CAD fájlok

Coordinated DEHNsecure M 2P 60 FM lightning current arrester
Modular, pluggable and coordinated two-pole lightning
current arresters, width: 4 mod.
for d.c. applications
with remote signalling contact
Type 1 SPD in accordance with EN 61643-11
Spark gap technology particularly suitable for use
in d.c. circuits
Fault indication
Max. continuous operating voltage: 60 V d.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Short-circuit strength (d.c.): 25 kA
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DSE M 2P 60 FM
Part No.: 971226
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Approvals	UL
Type of remote signalling contact	changeover contact

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Specific energy (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (W/R)	156.25 / 625.00 kJ/ohms
Directly coordinated with DEHNguard	DG SE DC 60 FM (Part No. 972 115)
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	125 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, DC-/DC+, 9) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+´/DC-´, DC-´/DC+´) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

A 971226 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971226 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Cikkszám 971222 DSE NG 2P 60 FM

GTIN 4013364489523, Vámtarifa szám (EU): 85363090, Bruttó súly: 507.00 g, PU: 1.00 pc(s)

Képek

Open PDF

További információ

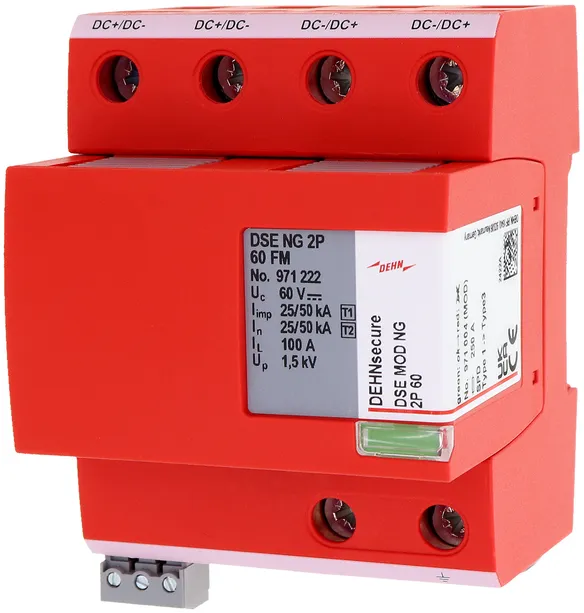

Coordinated lightning current arrester DEHNsecure NG 2P 60 FM
Two-pole, modular, pluggable
and coordinated lightning current arrester
for DC applications, width of 4 DIN modules
with remote signalling contact
Type 1 arrester as per EN 61643-11
Spark gap technology ideally suited for use in DC
circuits
Fault indication
Max. continuous operating voltage: 60 V DC
Voltage protection level: <= 1,5 kV
Lightning impulse current (10/350): 50 kA
DC short-circuit strength: 10 kA
Energy coordination according to DIN EN 62305-4
Arrester of the Red/Line series

Brand: DEHN
Type: DSE NG 2P 60 FM
Part No.: 971222
or equivalent.

Tanúsítványok

Műszaki adatok

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	250 A gG
Type of remote signalling contact	changeover contact

SPD classification according to EN 61643-11 / IEC 61643-11	type 1 / class I
Max. continuous operating voltage (d.c.) (U_C )	60 V
Lightning impulse current (10/350 µs) (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (I_imp )	25 / 50 kA
Specific energy (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (W/R)	156.25 / 625.00 kJ/ohms
Voltage protection level (DC+/DC- -> DC-/DC+) / (DC-/DC+ -> 9) (U_P )	≤ 1.5 / ≤ 1.5 kV
Response time (t_A )	≤ 100 ns
Short-circuit withstand capability for max. mains-side overcurrent protection d.c. (I_SCCR )	25 kA
Max. mains-side overcurrent protection	250 A gG
Max. backup fuse (DC+/DC- -> DC+'/DC-')	100 A gG
Operating temperature range (parallel connection) (T_UP )	-40 °C ... +80 °C
Operating temperature range (series connection) (T_US )	-40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	10 mm² solid / flexible
Cross-sectional area (DC+/DC-, DC-/DC+, 9) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (DC+´/DC-´, DC-´/DC+´) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

A 971222 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 971222 terméket hozzáadtuk a kosárhoz.

Webshop indítása

Results for products (0)

Results for content (0)

DEHNsecure modular

DEHNsecure M 1 ...

Cikkszám 971121 DSE M 1 60

A 971121 termék hozzá lett adva a jegyzettömbhöz.

A 971121 terméket hozzáadtuk a kosárhoz.

Cikkszám 971120 DSE M 1 220

A 971120 termék hozzá lett adva a jegyzettömbhöz.

A 971120 terméket hozzáadtuk a kosárhoz.

Cikkszám 971122 DSE M 1 242

A 971122 termék hozzá lett adva a jegyzettömbhöz.

A 971122 terméket hozzáadtuk a kosárhoz.

DEHNsecure M 1 ... FM

Cikkszám 971126 DSE M 1 60 FM

A 971126 termék hozzá lett adva a jegyzettömbhöz.

A 971126 terméket hozzáadtuk a kosárhoz.

Cikkszám 971125 DSE M 1 220 FM

A 971125 termék hozzá lett adva a jegyzettömbhöz.

A 971125 terméket hozzáadtuk a kosárhoz.

Cikkszám 971127 DSE M 1 242 FM

A 971127 termék hozzá lett adva a jegyzettömbhöz.

A 971127 terméket hozzáadtuk a kosárhoz.

DEHNsecure M 2P ... (FM)

Cikkszám 971221 DSE M 2P 60

A 971221 termék hozzá lett adva a jegyzettömbhöz.

A 971221 terméket hozzáadtuk a kosárhoz.

Cikkszám 971226 DSE M 2P 60 FM

A 971226 termék hozzá lett adva a jegyzettömbhöz.

A 971226 terméket hozzáadtuk a kosárhoz.

DEHNsecure NG 2P 60 FM

Cikkszám 971222 DSE NG 2P 60 FM

A 971222 termék hozzá lett adva a jegyzettömbhöz.

A 971222 terméket hozzáadtuk a kosárhoz.

DEHNsecure modular

DEHNsecure M 1 ...

Cikkszám 971121 DSE M 1 60

Ön nem jogosult a letöltésre 961110.stp

Ön nem jogosult a letöltésre 961110.igs

Ön nem jogosult a letöltésre 961110.jt

Ön nem jogosult a letöltésre 961110.dwg

Ön nem jogosult a letöltésre 971120m_E.dxf

Ön nem jogosult a letöltésre DEHN.971121.wspak

Ön nem jogosult a letöltésre DEHN.971121.edz

A 971121 termék hozzá lett adva a jegyzettömbhöz.

A 971121 terméket hozzáadtuk a kosárhoz.

Cikkszám 971120 DSE M 1 220

Ön nem jogosult a letöltésre 961110.stp

Ön nem jogosult a letöltésre 961110.igs

Ön nem jogosult a letöltésre 961110.jt

Ön nem jogosult a letöltésre 961110.dwg

Ön nem jogosult a letöltésre 971120m_E.dxf

Ön nem jogosult a letöltésre DEHN.971120.wspak

Ön nem jogosult a letöltésre DEHN.971120.edz

A 971120 termék hozzá lett adva a jegyzettömbhöz.

A 971120 terméket hozzáadtuk a kosárhoz.

Cikkszám 971122 DSE M 1 242

Ön nem jogosult a letöltésre 961110.stp

Ön nem jogosult a letöltésre 961110.igs

Ön nem jogosult a letöltésre 961110.jt

Ön nem jogosult a letöltésre 961110.dwg

Ön nem jogosult a letöltésre 971120m_E.dxf

Ön nem jogosult a letöltésre DEHN.971122.wspak

Ön nem jogosult a letöltésre DEHN.971122.edz

A 971122 termék hozzá lett adva a jegyzettömbhöz.

A 971122 terméket hozzáadtuk a kosárhoz.

DEHNsecure M 1 ... FM

Cikkszám 971126 DSE M 1 60 FM

Ön nem jogosult a letöltésre 961115.stp

Ön nem jogosult a letöltésre 961115.igs

Ön nem jogosult a letöltésre 961115.jt

Ön nem jogosult a letöltésre 961115.dwg

Ön nem jogosult a letöltésre 971125m_E.dxf

Ön nem jogosult a letöltésre DEHN.971126.wspak

Ön nem jogosult a letöltésre DEHN.971126.edz

A 971126 termék hozzá lett adva a jegyzettömbhöz.

A 971126 terméket hozzáadtuk a kosárhoz.

Cikkszám 971125 DSE M 1 220 FM

Ön nem jogosult a letöltésre 961115.stp

Ön nem jogosult a letöltésre 961115.igs

Ön nem jogosult a letöltésre 961115.jt

Ön nem jogosult a letöltésre 961115.dwg

Ön nem jogosult a letöltésre 971125m_E.dxf

Ön nem jogosult a letöltésre DEHN.971125.wspak

Ön nem jogosult a letöltésre DEHN.971125.edz

A 971125 termék hozzá lett adva a jegyzettömbhöz.

A 971125 terméket hozzáadtuk a kosárhoz.

Cikkszám 971127 DSE M 1 242 FM

Ön nem jogosult a letöltésre 961115.stp

Ön nem jogosult a letöltésre 961115.igs

Ön nem jogosult a letöltésre 961115.jt

Ön nem jogosult a letöltésre 961115.dwg

Ön nem jogosult a letöltésre 971125m_E.dxf

Ön nem jogosult a letöltésre DEHN.971127.wspak

Ön nem jogosult a letöltésre DEHN.971127.edz

A 971127 termék hozzá lett adva a jegyzettömbhöz.

A 971127 terméket hozzáadtuk a kosárhoz.

DEHNsecure M 2P ... (FM)

Cikkszám 971221 DSE M 2P 60

Ön nem jogosult a letöltésre 951200.stp

Ön nem jogosult a letöltésre 951200.igs

Ön nem jogosult a letöltésre 951200.jt

Ön nem jogosult a letöltésre 951200.dwg

Ön nem jogosult a letöltésre 971221m_E.dxf

Ön nem jogosult a letöltésre DEHN.971221.wspak

Ön nem jogosult a letöltésre DEHN.971221.edz

A 971221 termék hozzá lett adva a jegyzettömbhöz.

A 971221 terméket hozzáadtuk a kosárhoz.

Cikkszám 971226 DSE M 2P 60 FM

Ön nem jogosult a letöltésre 951205.stp

Ön nem jogosult a letöltésre 951205.igs

Ön nem jogosult a letöltésre 951205.jt

Ön nem jogosult a letöltésre 951205.dwg

Ön nem jogosult a letöltésre 971226m_E.dxf
