Tripod for Supporting Tubes without Side Outlet

Stands for holding HVI supporting tubes for internally/externally routed HVI Conductors in/on the supporting tube, with double clamp for connection of 2x Rd 8–10 mm. Adjustable to the roof slope up to max. 10° using a variable fixing on the base holder.

The stackable concrete bases, the plastic base plates and the base holder set for holding additional concrete bases are each available separately in the accessories.

Note: Please contact us here at DEHN to find out whether the material of the roof conductor holders and plastic base plates is compatible with the roof elements.

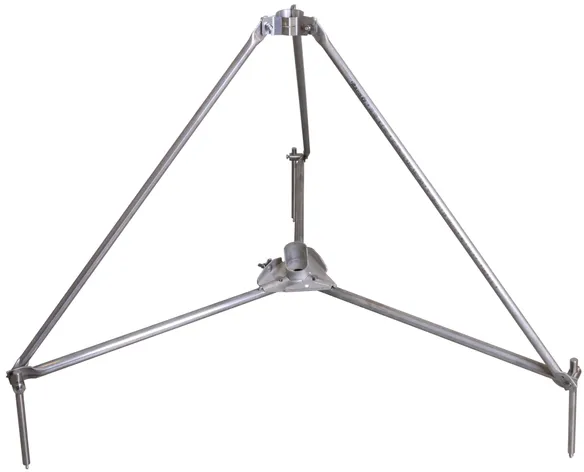

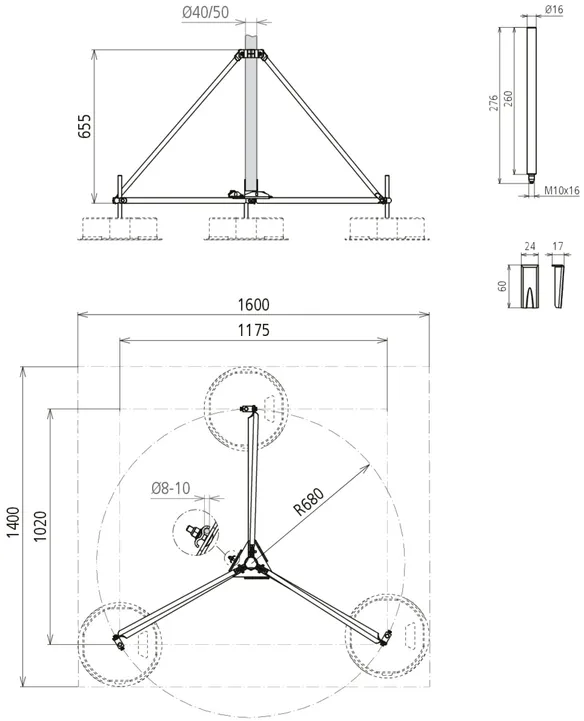

Tripod small

1 Termék

Cikkszám 107390 DBS KB D50 RA680 V2A

GTIN 4013364478466, Vámtarifa szám (EU): 85389099, Bruttó súly: 7.75 kg, PU: 1.00 pc(s)

Kifutott termék:

Képek

További információ

Tripod, small, StSt (hinged design)
Tripod (hinged design) for supporting tubes
D 50 mm with side outlet or air-termination rod
D 40 mm with reduction accessories
With double clamp for the connection 2x Rd 8–10 mm
For erection with concrete bases (weight 17 kg)
Compensation for the roof slope angle up to max. 10°
Stackable concrete base (part no. 102 010)
Plastic base plate (part no. 102 050)
Base holder set (part no. 107 396)
Reduction accessories (part no. 107 399)
must be ordered separately.
Tripods are dimensioned in
line with Eurocode 1 (DIN EN 1991-1-4 + DIN
EN 1991-1-4/NA).
Material of tripod: StSt
Support: 50 and 40*) mm
Radius: 680 mm
Space required for tripod: 1175 x 1020 mm

Brand: DEHN
Type: DBS KB D50 RA680 V2A
Part No.: 107390
or equivalent.

Tanúsítványok



Műszaki adatok

Material of tripod StSt
Support 50 and 40*) mm
Radius 680 mm
Space required for tripod 1175 x 1020 mm
*) Only with adapter set part no. 107 399.

A 107390 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 107390 terméket hozzáadtuk a kosárhoz.

Webshop indítása

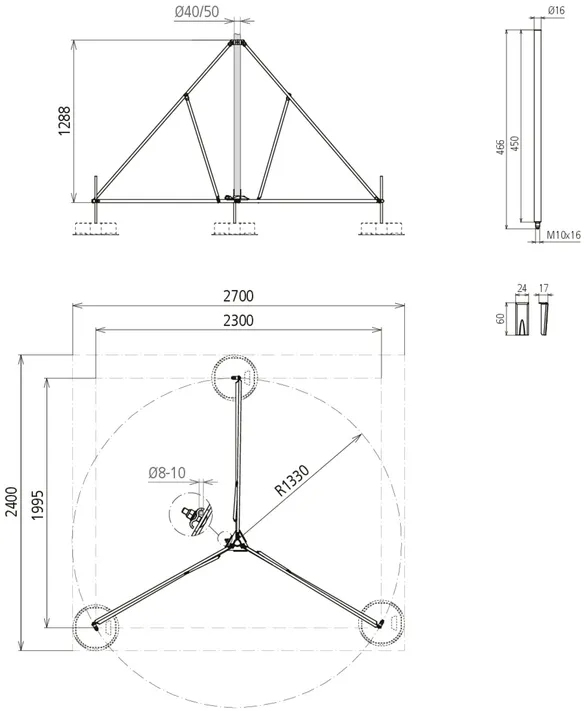

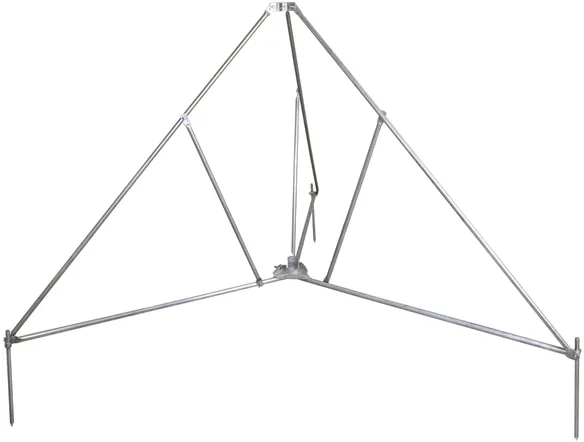

Tripod large

1 Termék

Cikkszám 107391 DBS KB D50 RA1330 V2A

GTIN 4013364478473, Vámtarifa szám (EU): 85389099, Bruttó súly: 15.60 kg, PU: 1.00 pc(s)

Kifutott termék:

Képek

További információ

Tripod, large, StSt (hinged design)
Tripod (hinged design) for supporting tubes
D50 mm with side outlet and double clamp for
the connection 2x Rd 8–10 mm, for erection with
concrete base (weight 17 kg) with adjustment to the roof slope to a max. of 10° using
the base holder set.
Stackable concrete base (part no. 102 010)
Plastic base plate (part no. 102 050)
Base holder set (part no. 107 396)
Reduction accessories (part no. 107 399)
must be ordered separately.
Tripods are dimensioned in
line with Eurocode 1 (DIN EN 1991-1-4 + DIN
EN 1991-1-4/NA).
Material of tripod: StSt
Support: 50 and 40*) mm
Radius: 1330 mm
Space required for tripod: 2300 x 1995 mm

Brand: DEHN
Type: DBS KB D50 RA1330 V2A
Part No.: 107391
or equivalent.

Tanúsítványok



Műszaki adatok

Material of tripod StSt
Support 50 and 40*) mm
Radius 1330 mm
Space required for tripod 2300 x 1995 mm
*) Only with adapter set part no. 107 399.

A 107391 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 107391 terméket hozzáadtuk a kosárhoz.

Webshop indítása

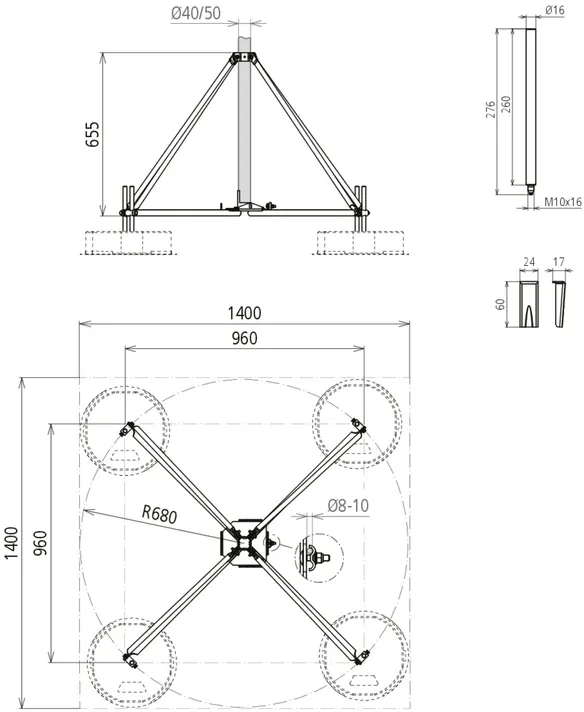

Four-legged stand, small

1 Termék

Cikkszám 107490 VBS KB D50 RA680 V2A

GTIN 4013364478480, Vámtarifa szám (EU): 85389099, Bruttó súly: 10.38 kg, PU: 1.00 pc(s)

Képek

További információ

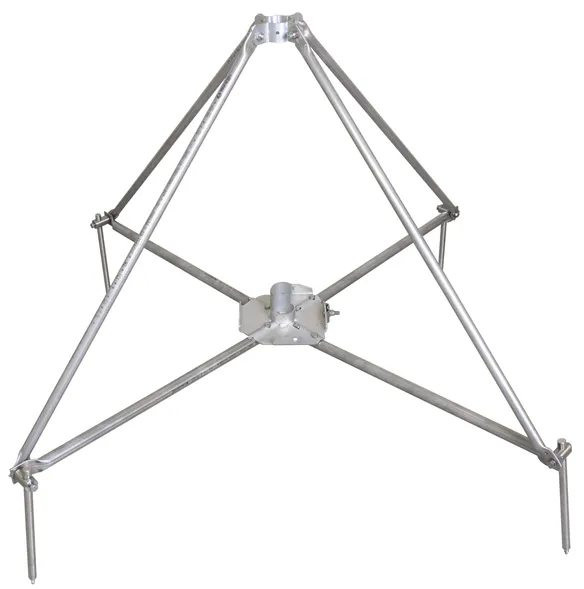

Four-legged stand, small, StSt (hinged design)
Four-legged stand (hinged design) for supporting tubes
D 50 mm with side outlet or air-termination rod
D 40 mm with reduction accessories
With double clamp for the connection 2x Rd 8–10 mm
For erection with concrete bases (weight 17 kg)
Compensation for the roof slope angle up to max. 10°
Stackable concrete base (part no. 102 010)
Plastic base plate (part no. 102 050)
Base holder set (part no. 107 396)
Reduction accessories (part no. 107 399)
must be ordered separately.
Four-legged stands are dimensioned in
line with Eurocode 1 (DIN EN 1991-1-4 + DIN
EN 1991-1-4/NA).
Material of tripod: StSt
Support: 50 and 40*) mm
Radius: 680 mm
Space required for tripod: 960 x 960 mm

Brand: DEHN
Type: VBS KB D50 RA680 V2A
Part No.: 107490
or equivalent.

Tanúsítványok



Műszaki adatok

Material of tripod StSt
Support 50 and 40*) mm
Radius 680 mm
Space required for tripod 960 x 960 mm
*) Only with adapter set part no. 107 399.

A 107490 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 107490 terméket hozzáadtuk a kosárhoz.

Webshop indítása

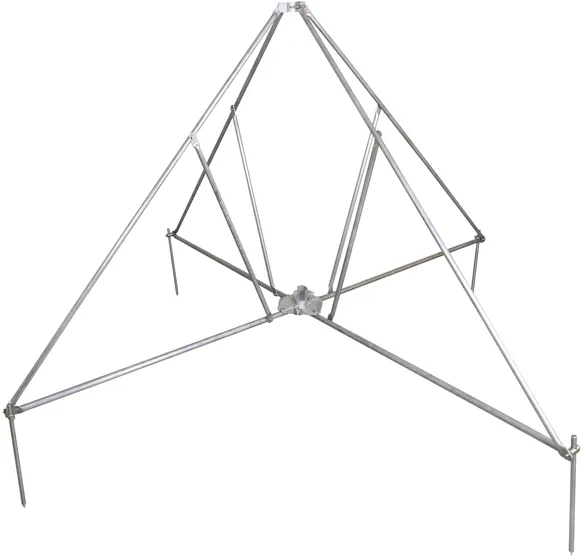

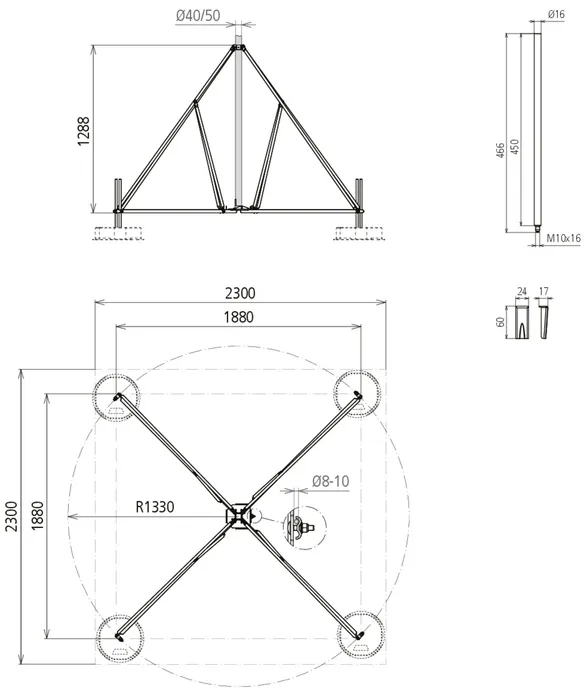

Four-legged stand, large

1 Termék

Cikkszám 107491 VBS KB D50 RA1330 V2A

GTIN 4013364478497, Vámtarifa szám (EU): 85389099, Bruttó súly: 17.63 kg, PU: 1.00 pc(s)

Képek

További információ

Four-legged stand, large, StSt, (hinged design)
Four-legged stand (hinged design) for supporting tubes
D 50 mm with side outlet or air-termination rod
D 40 mm with reduction accessories
With double clamp for the connection 2x Rd 8–10 mm
For erection with concrete bases (weight 17 kg)
Compensation for the roof slope angle up to max. 10°
Stackable concrete base (part no. 102 010)
Plastic base plate (part no. 102 050)
Base holder set (part no. 107 396)
Reduction accessories (part no. 107 399)
must be ordered separately.
Four-legged stands are dimensioned in
line with Eurocode 1 (DIN EN 1991-1-4 + DIN
EN 1991-1-4/NA).
Material of tripod: StSt
Support: 50 and 40*) mm
Radius: 1330 mm
Space required for tripod: 1880 x 1880 mm

Brand: DEHN
Type: VBS KB D50 RA1330 V2A
Part No.: 107491
or equivalent.

Tanúsítványok



Műszaki adatok

Material of tripod StSt
Support 50 and 40*) mm
Radius 1330 mm
Space required for tripod 1880 x 1880 mm
*) Only with adapter set part no. 107 399.

A 107491 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 107491 terméket hozzáadtuk a kosárhoz.

Webshop indítása

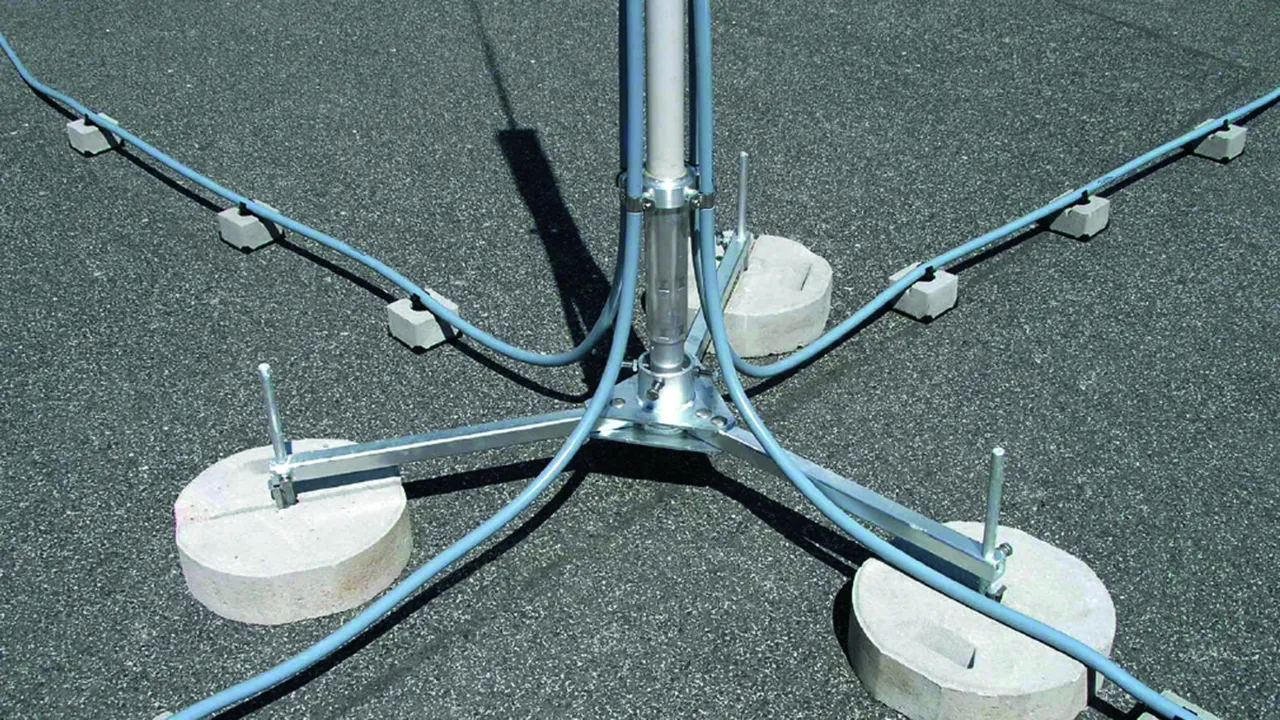

Tripod, small, HDG steel

Suitable for the inner routing of the HVI Conductor.

2 Termékek

Cikkszám 105351 DBS KB D40.50 RA620 STTZN

GTIN 4013364238916, Vámtarifa szám (EU): 85389099, Bruttó súly: 11.50 kg, PU: 1.00 pc(s)

Képek

További információ

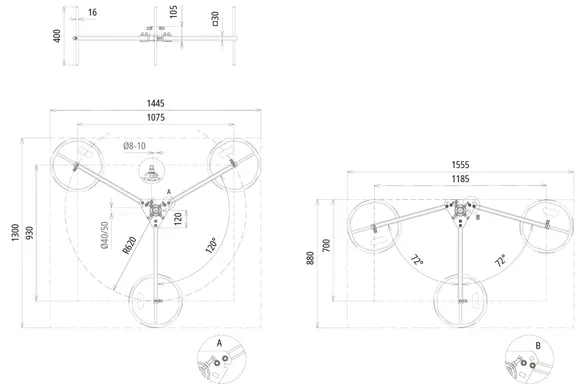

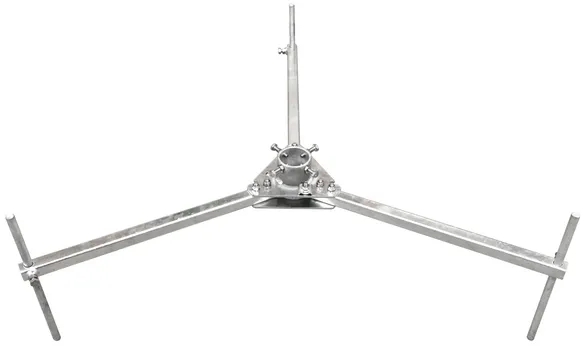

Tripod for HVI Conductors, small, St/tZn
Tripod for HVI Conductors installed inside the supporting tube
Special type for supporting tubes (length of 3200 mm).
In order to keep within the bending radius of the HVI Conductor at the bottom of the tripod,
put 2 concrete bases under and one on top of the brace.
Adjustable to roof inclinations up to max. 10° without additional fixing on structural elements.
The stackable concrete base (Part No. 102 010) and the base plate (Part No. 102 050) have to be ordered separately.
Tripods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Material of tripod: St/tZn
Support: 40 / 50 mm
Radius: 620 mm
Number of concrete bases: 3-12 blocks, 17 kg each
Space required for tripod: 1300 x 1450 mm

Brand: DEHN
Type: DBS KB D40.50 RA620 STTZN
Part No.: 105351
or equivalent.



Műszaki adatok

Material of tripod St/tZn
Support 40 / 50 mm
Radius 620 mm
Number of concrete bases 3-12 blocks, 17 kg each
Space required for tripod 1300 x 1450 mm

A 105351 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105351 terméket hozzáadtuk a kosárhoz.

Webshop indítása

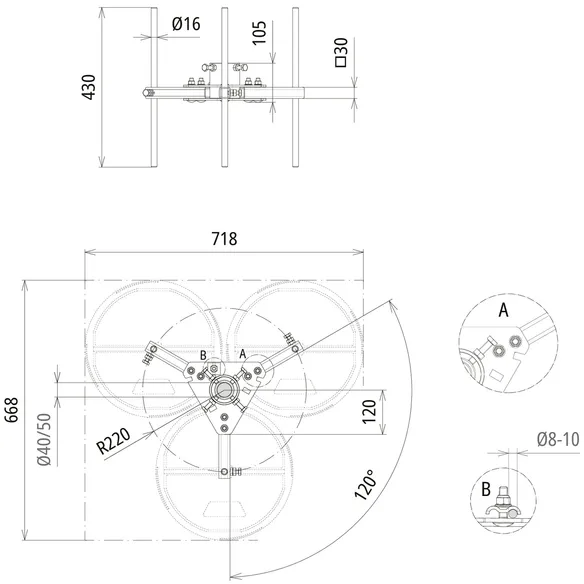

Cikkszám 105357 DBS KB D40.50 RA220 STTZN

GTIN 4013364527829, Vámtarifa szám (EU): 85389099, Bruttó súly: 8.04 kg, PU: 1.00 pc(s)

Képek

További információ

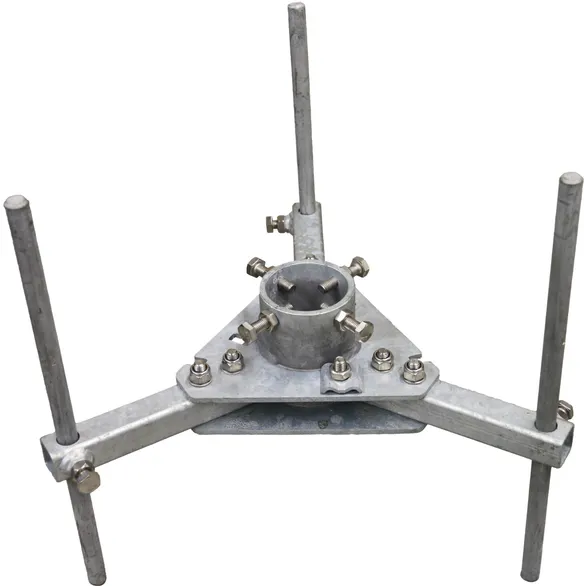

Space-saving tripod, height-adjustable and hinged
for supporting air-termination rods and supporting tubes
Ø40 mm and Ø50 mm
Compensation for roof pitches of up to 10° possible
holding of up to four concrete bases
per leg possible
Material of tripod: St/tZn
Support: 40 / 50 mm
Radius: 220 mm
Number of concrete bases: 3-12 blocks, 17 kg each
Space required for tripod: 668 x 718 mm

Brand: DEHN
Type: DBS KB D40.50 RA220 STTZN
Part No.: 105357
or equivalent.



Műszaki adatok

Material of tripod St/tZn
Support 40 / 50 mm
Radius 220 mm
Number of concrete bases 3-12 blocks, 17 kg each
Space required for tripod 668 x 718 mm

A 105357 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105357 terméket hozzáadtuk a kosárhoz.

Webshop indítása

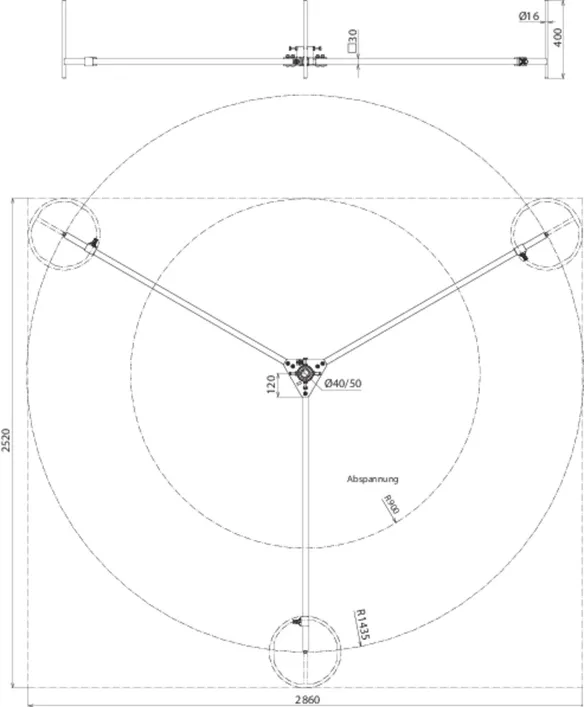

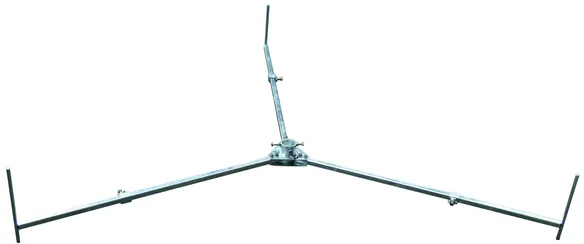

Tripod, large, HDG steel

Suitable for the outer routing of the HVI Conductor.

1 Termék

Cikkszám 105201 DBS KB D40.50 RA1435 STTZN

GTIN 4013364095915, Vámtarifa szám (EU): 85389099, Bruttó súly: 17.23 kg, PU: 1.00 pc(s)

Képek

További információ

Tripod for HVI Conductors, St/tZn
Tripod for HVI Conductors installed inside the supporting tube
Special type for supporting tubes (length of 4700 mm).
In order to keep within the bending radius of the HVI Conductor at the bottom of the tripod,
2 concrete bases are installed below and one above the legs.
Adjustable to roof inclinations up to max. 10° without additional fixing on structural elements.
The stackable concrete base (Part No. 102 010) and the base plate (Part No. 102 050) have to be ordered separately.
Tripods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
Material of tripod: St/tZn
Support: 40 / 50 mm
Radius: 1435 mm
Number of concrete bases: 3-12 blocks 17 kg each
Space required for tripod: 2520 x 2860 mm

Brand: DEHN
Type: DBS KB D40.50 RA1435 STTZN
Part No.: 105201
or equivalent.



Műszaki adatok

Material of tripod St/tZn
Support 40 / 50 mm
Radius 1435 mm
Number of concrete bases 3-12 blocks 17 kg each
Space required for tripod 2520 x 2860 mm

A 105201 termék hozzá lett adva a jegyzettömbhöz.

Jegyzettömb indítása

A 105201 terméket hozzáadtuk a kosárhoz.

Webshop indítása
