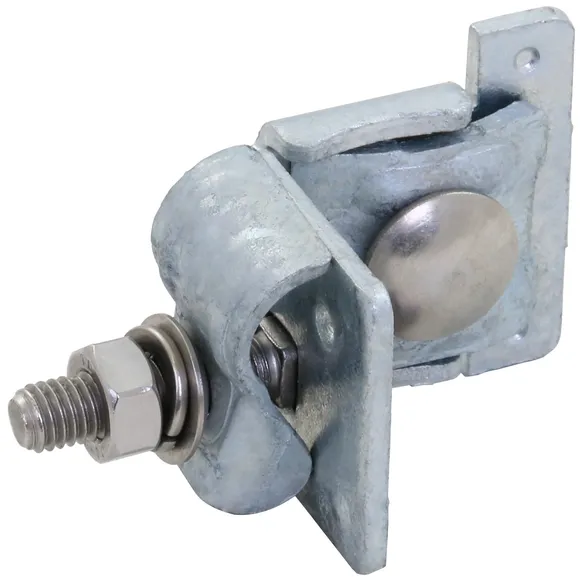

Angle bracket for short-circuit wire on gabions
:quality(98)/dehn.hu/store/f/50289985/HDVORSCHAU/419750a1.jpg)
:quality(98)/dehn.hu/store/f/50289985/HDVORSCHAU/419750a1.jpg)

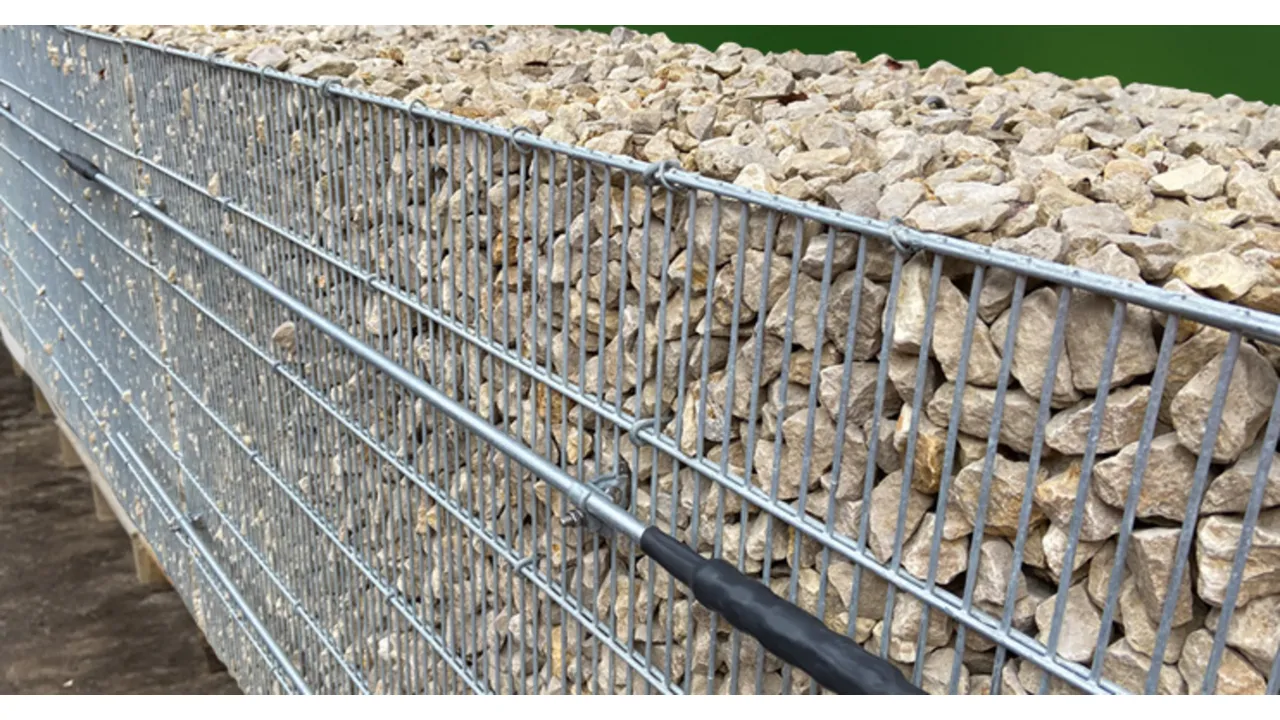

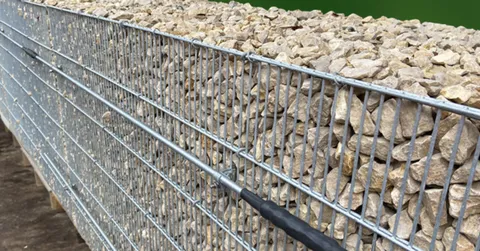

Bracket for short-circuit wire on stone gabions
Cikkszám 419750 LH DQ 16 KBG 4.8 W STTZN/3 EBS 15.03.47
GTIN 4013364486898, Vámtarifa szám (EU): 85389099, Bruttó súly: 164.40 g, PU: 50.00 pc(s)
:quality(98)/dehn.hu/store/f/50289991/HDVORSCHAU/419750.jpg)
:quality(98)/dehn.hu/store/f/50289991/HDVORSCHAU/419750.jpg)
:quality(98)/dehn.hu/store/f/50289992/HDVORSCHAU/419750m.jpg)
:quality(98)/dehn.hu/store/f/50289992/HDVORSCHAU/419750m.jpg)

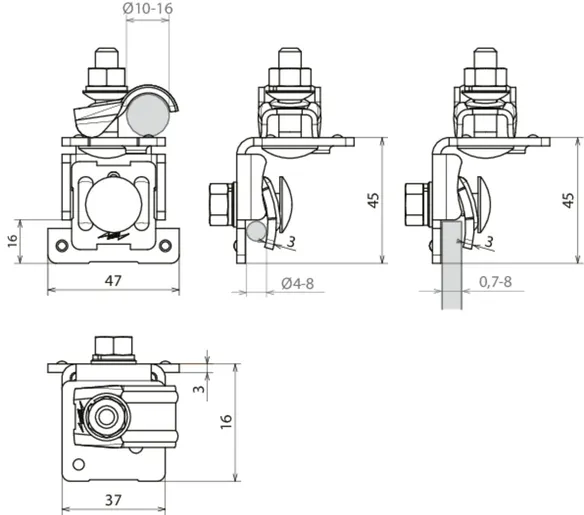

Műszaki adatok
| Bar clamping range | 4-8 mm |
| Clamp material | St/tZn |
| Clamping range Rd | 10-16 mm |
| Screw | e M8 x 25 mm, e M8 x 35 mm |
| Material of screw / nut | StSt |
| Design with | Spring washer and spherical washer |
