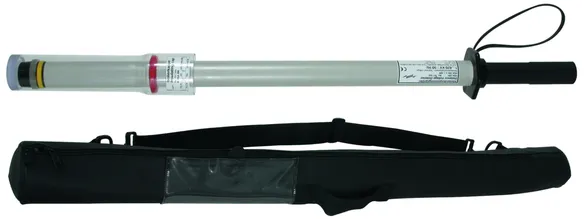

HSA 205 NAF kémlelő
:quality(98)/dehn.hu/store/f/50161608/HDVORSCHAU/767555a1_16-9.jpg)
:quality(98)/dehn.hu/store/f/50161608/HDVORSCHAU/767555a1_16-9.jpg)

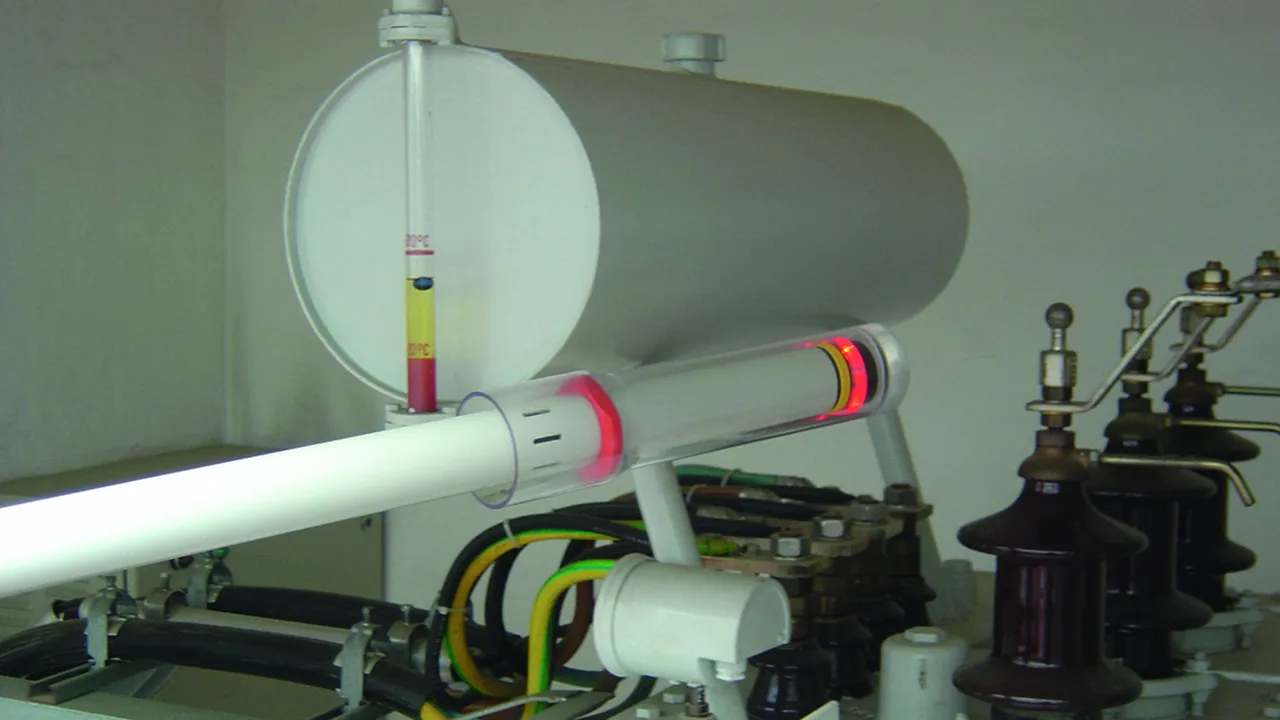

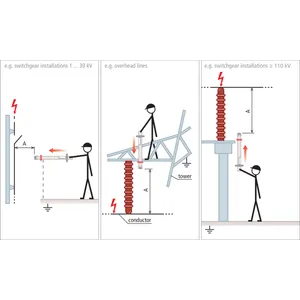

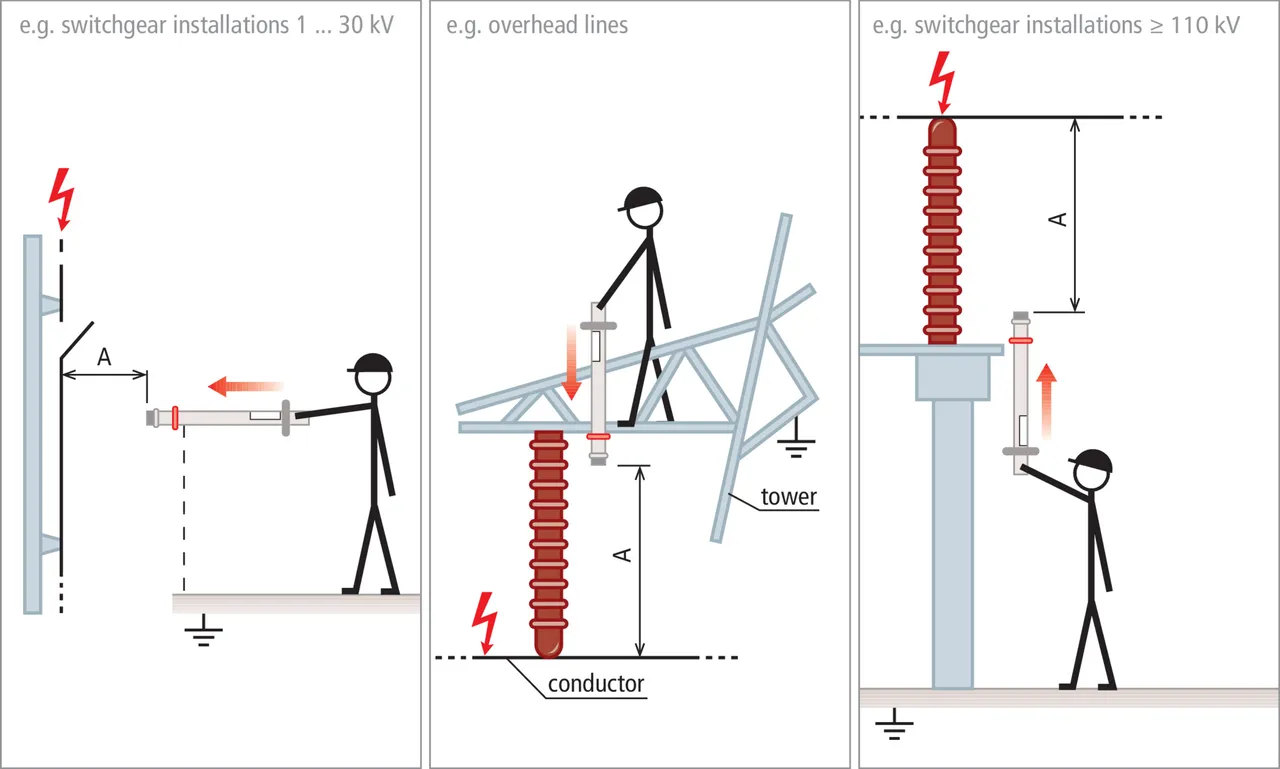

- For contactlessly verifying that switchgear installations and high-voltage overhead lines are dead
- Wide nominal voltage range
Details
:quality(98)/dehn.hu/store/f/50161609/HDVORSCHAU/767555az1_E.jpg)
:quality(98)/dehn.hu/store/f/50161609/HDVORSCHAU/767555az1_E.jpg)
:quality(98)/dehn.hu/store/f/50161610/HDVORSCHAU/767552_Spannungsbereich_E.jpg)
:quality(98)/dehn.hu/store/f/50161610/HDVORSCHAU/767552_Spannungsbereich_E.jpg)
Cikkszám 767552 HSA205 U 1 420 STK
GTIN 4013364115736, Vámtarifa szám (EU): 90303370, Bruttó súly: 2.50 kg, PU: 1.00 db.
Műszaki adatok

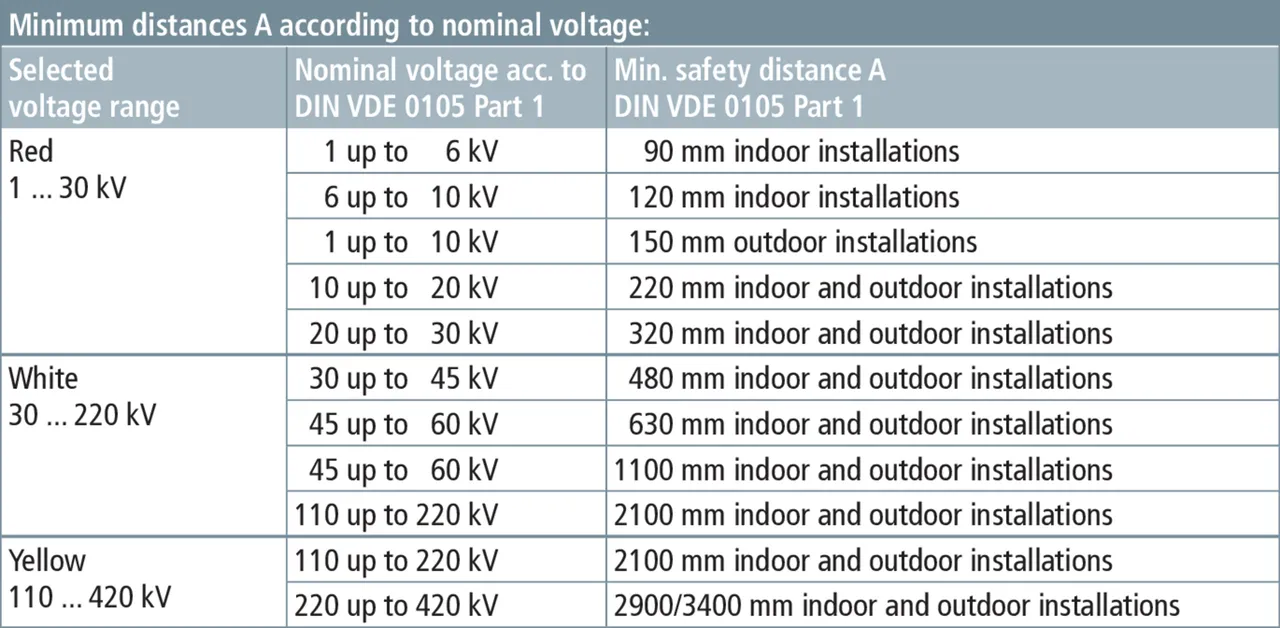

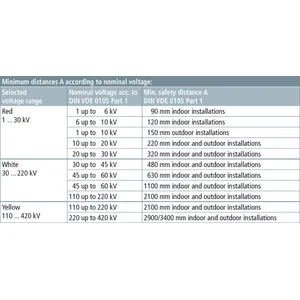

Nominal voltage range (UN ) | 1 ... 30 / 30 ... 220 / 110 ... 420 kV |
Frequency | 50 Hz |

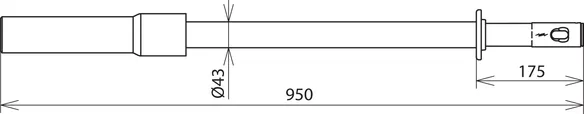

Total length (lG ) | 950 mm |
Insulating clearance (lI ) | 540 mm |
Cikkszám 767547 HSA205 U 1 420SN7608
GTIN 4013364158276, Vámtarifa szám (EU): 90303370, Bruttó súly: 2.00 kg, PU: 1.00 db.
Műszaki adatok
Nominal voltage range (UN ) | 1 ... 30 / 30 ... 220 / 110 ... 420 kV |
Frequency | 60 Hz |
Total length (lG ) | 950 mm |
Insulating clearance (lI ) | 540 mm |
