HSA 194 NAF kémlelő
:quality(98)/dehn.hu/store/f/50806927/HDVORSCHAU/767542a3_16-9.jpg)
:quality(98)/dehn.hu/store/f/50806927/HDVORSCHAU/767542a3_16-9.jpg)

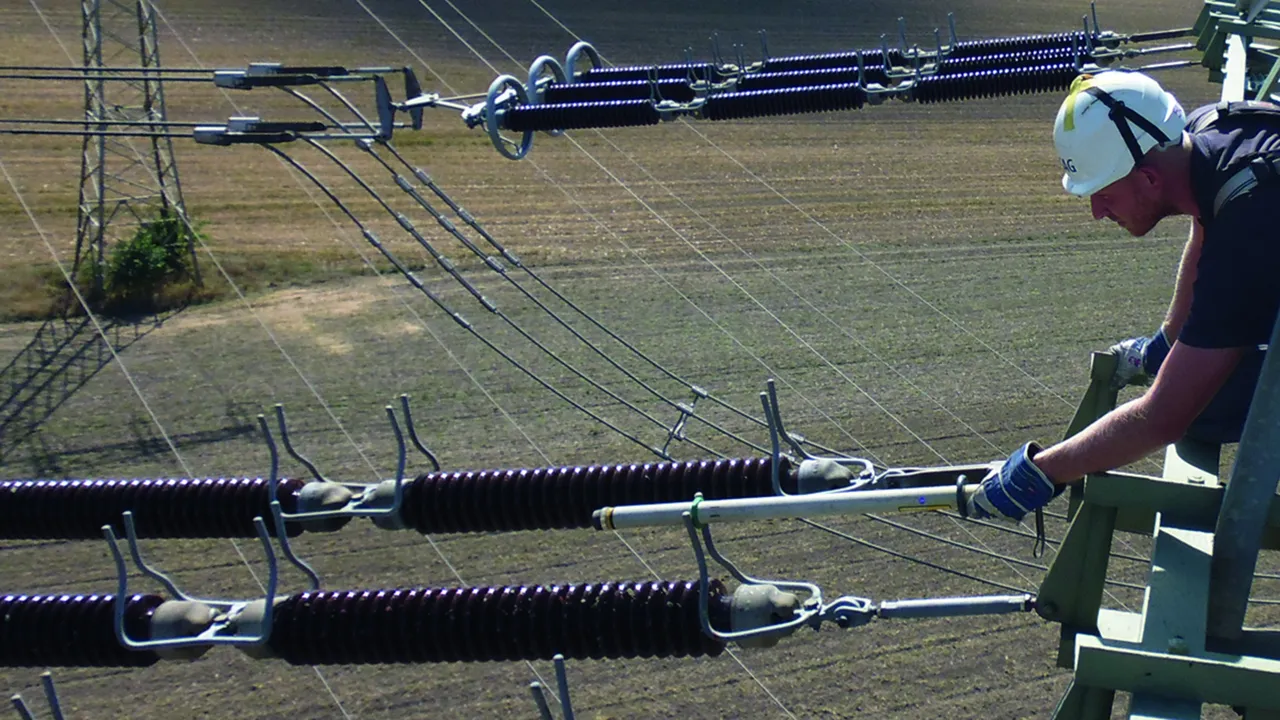

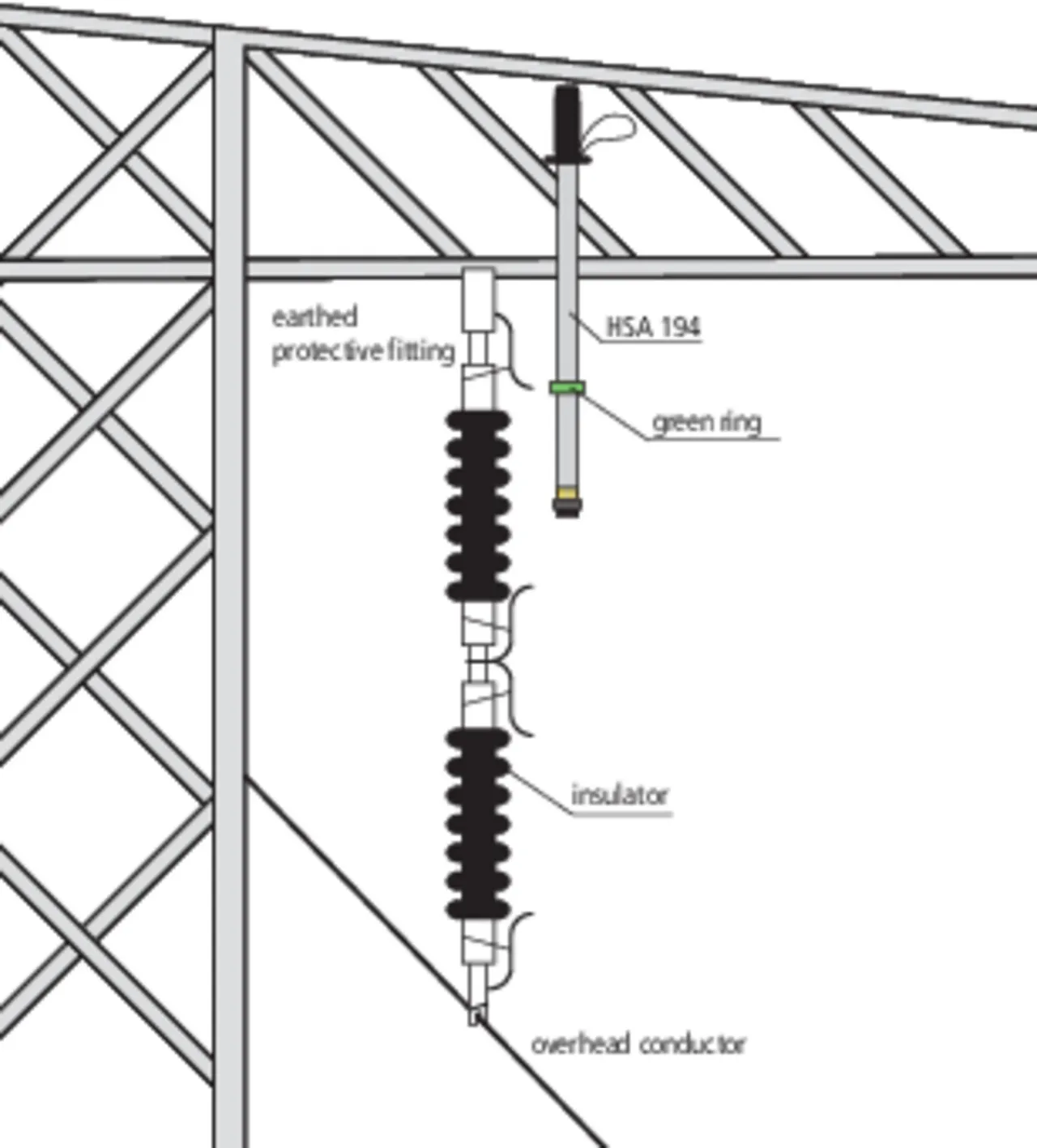

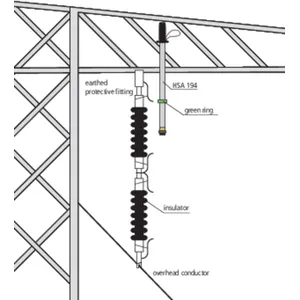

- For contactlessly verifying that switchgear and high-voltage overhead lines or centre-earthed monophase traction power lines are dead

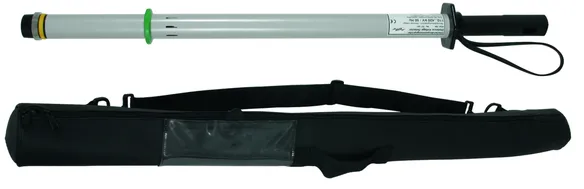

- Cost-effective / space-saving transport
Details
:quality(98)/dehn.hu/store/f/50806930/HDVORSCHAU/767542az1_e.jpg)
:quality(98)/dehn.hu/store/f/50806930/HDVORSCHAU/767542az1_e.jpg)
:quality(98)/dehn.hu/store/f/50806928/HDVORSCHAU/767542az2_E.jpg)
:quality(98)/dehn.hu/store/f/50806928/HDVORSCHAU/767542az2_E.jpg)
:quality(98)/dehn.hu/store/f/50806929/HDVORSCHAU/767539_Mindestabstand_E.jpg)
:quality(98)/dehn.hu/store/f/50806929/HDVORSCHAU/767539_Mindestabstand_E.jpg)
Cikkszám 767541 HSA194 110 420 STK
GTIN 4013364115712, Vámtarifa szám (EU): 90303370, Bruttó súly: 1.70 kg, PU: 1.00 db.
Műszaki adatok
Nominal voltage range (UN ) | 110 ... 420 kV |
Frequency | 50 Hz |

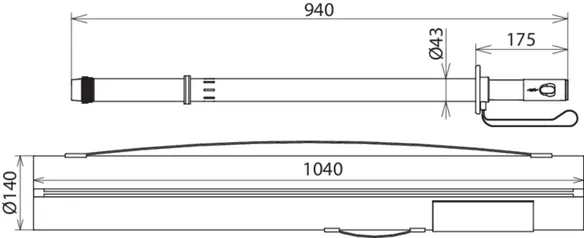

Total length (lG ) | 940 mm |
Insulating clearance (lI ) | 540 mm |
Verification while climbing the tower | No |
Cikkszám 767542 HSA194 110 420 16.7
GTIN 4013364086616, Vámtarifa szám (EU): 90303370, Bruttó súly: 5.85 kg, PU: 1.00 db.
Kifutott termék:Műszaki adatok
Nominal voltage range (UN ) | 110 ... 420 kV |
Frequency | 16.7 Hz |
Total length (lG ) | 940 mm |
Insulating clearance (lI ) | 540 mm |
DB drawing No. | 3 Ekgw 02.54 |
Verification while climbing the tower | No |
Cikkszám 767539 HSA 194 110 420 SN7737
GTIN 4013364306769, Vámtarifa szám (EU): 90303370, Bruttó súly: 1.82 kg, PU: 1.00 db.
Műszaki adatok
Nominal voltage range (UN ) | 110 ... 420 kV |
Frequency | 50 Hz |
Total length (lG ) | 940 mm |
Insulating clearance (lI ) | 540 mm |

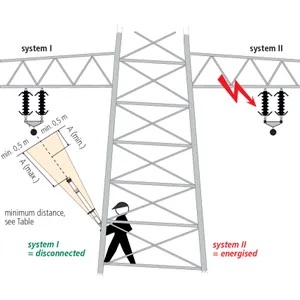

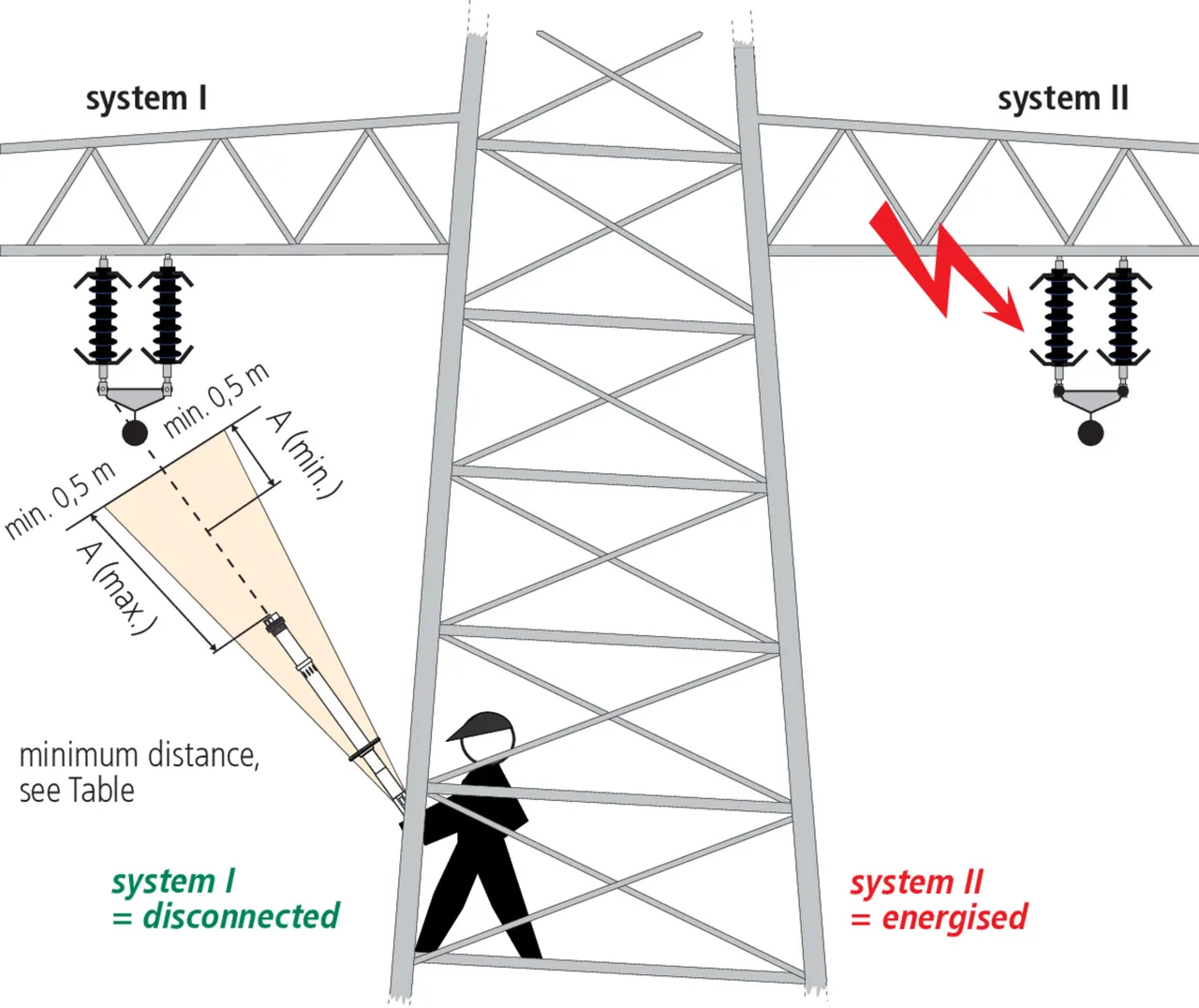

Verification while climbing the tower | Yes |
